Geberit Mapress CuNiFe When water turns aggressive
The salt water specialist

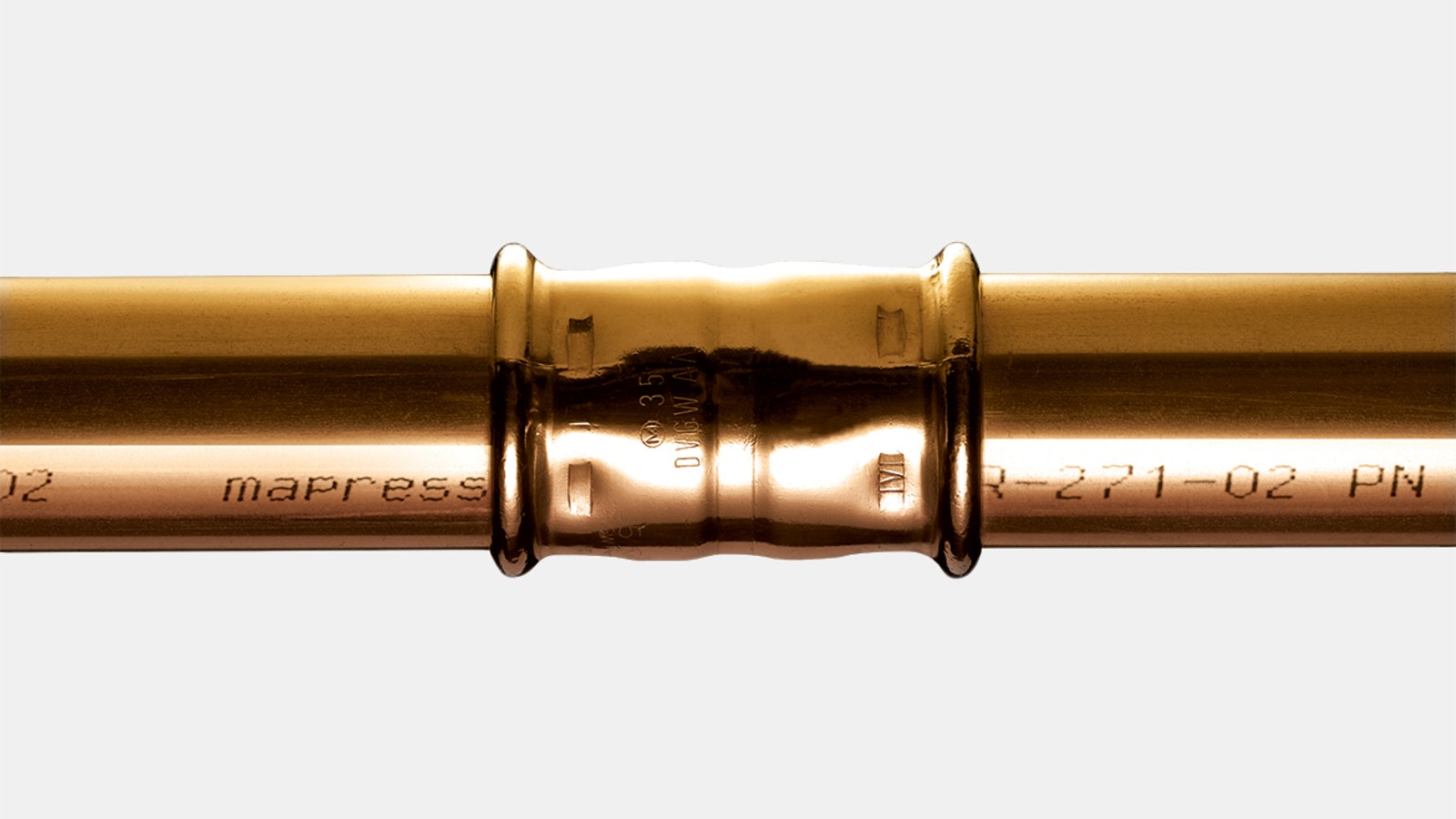

Due to its high level of corrosion resistance, the Geberit Mapress CuNiFe copper/nickel/iron alloy has proven itself, especially for pipelines carrying salt water and in shipbuilding.
Geberit Mapress CuNiFe applications
- Industry
- Shipbuilding
Many good reasons for Geberit Mapress CuNiFe
Assortment
Dimensions
Fittings
Seals
System pipes
Dimensions
| Nominal width (DN) | Dimension d x s (mm) |
|---|---|
| 12 | 15.0 x 1.0 |
| 20 | 22.0 x 1.0 |
| 20 | 22.0 x 1.5 |
| 25 | 28.0 x 1.5 |
| 32 | 35.0 x 1.5 |
| 40 | 42.0 x 1.5 |
| 50 | 54.0 x 1.5 |
| 65 | 76.1 x 2.0 |
| 80 | 88.9 x 2.0 |
| 100 | 108.0 x 2.0 |
Fittings

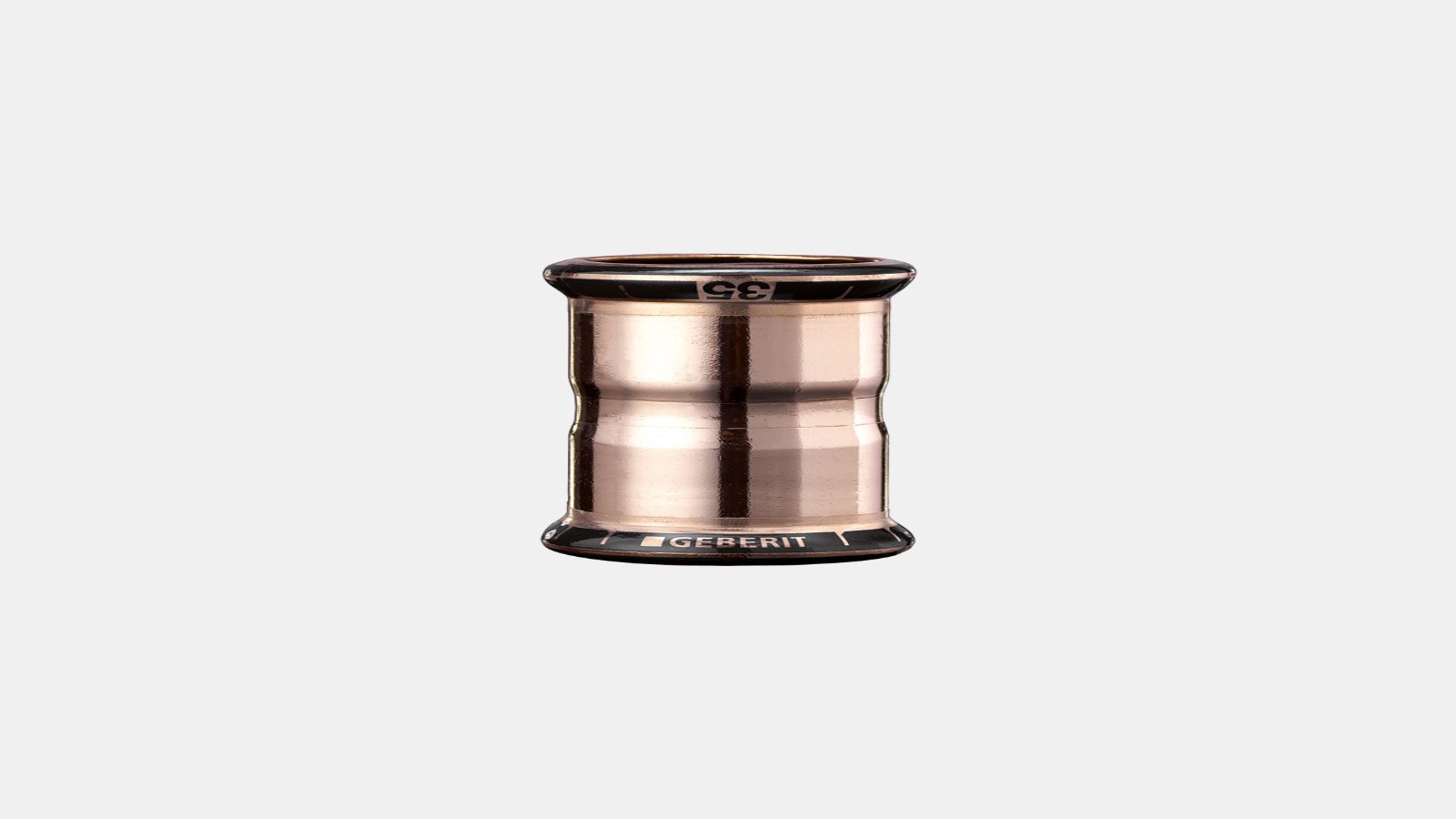

Geberit MapressCuNiFe fittings
- Geberit MapressCuNiFe fittings and pipes made of copper/nickel/iron alloy
- Black pressing indicator indicates CuNiFe
- Dimension printed on the pressing indicator
- Non-pressed connections are leaky and immediately identifiable during a pressure test
- Protection plug prevents fittings from becoming dirty
- Particularly suitable for applications in shipbuilding or in contact with salt water
Seals
The following applications each relate to the combination of the Geberit MapressCuNiFe seal ring with the Geberit MapressCuNiFe fittings.

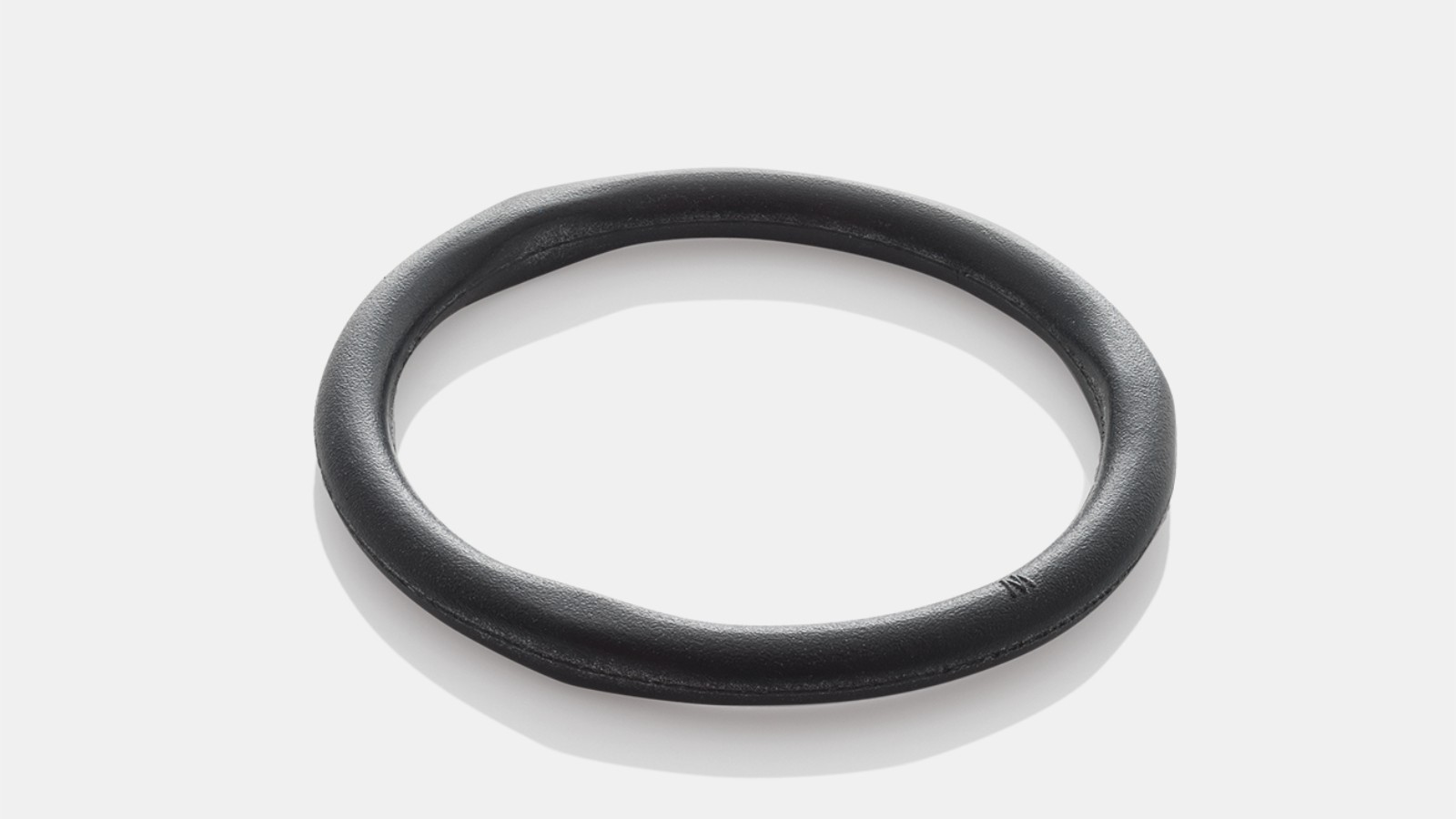

Geberit Mapress seal ring CIIR black
- Cooling water without antifreeze agent
- Cooling water with antifreeze agent
- Service water
- Grey and black water with pH value > 6.0
- Salt water
- Extinguishing water (wet)
- Sprinkler (wet)
- Compressed air (oil purity class 0–3)
- Negative pressure
- Inert gases
Geberit MapressCuNiFe fittings are delivered as standard with Geberit MapressCuNiFe seal rings CIIR black.

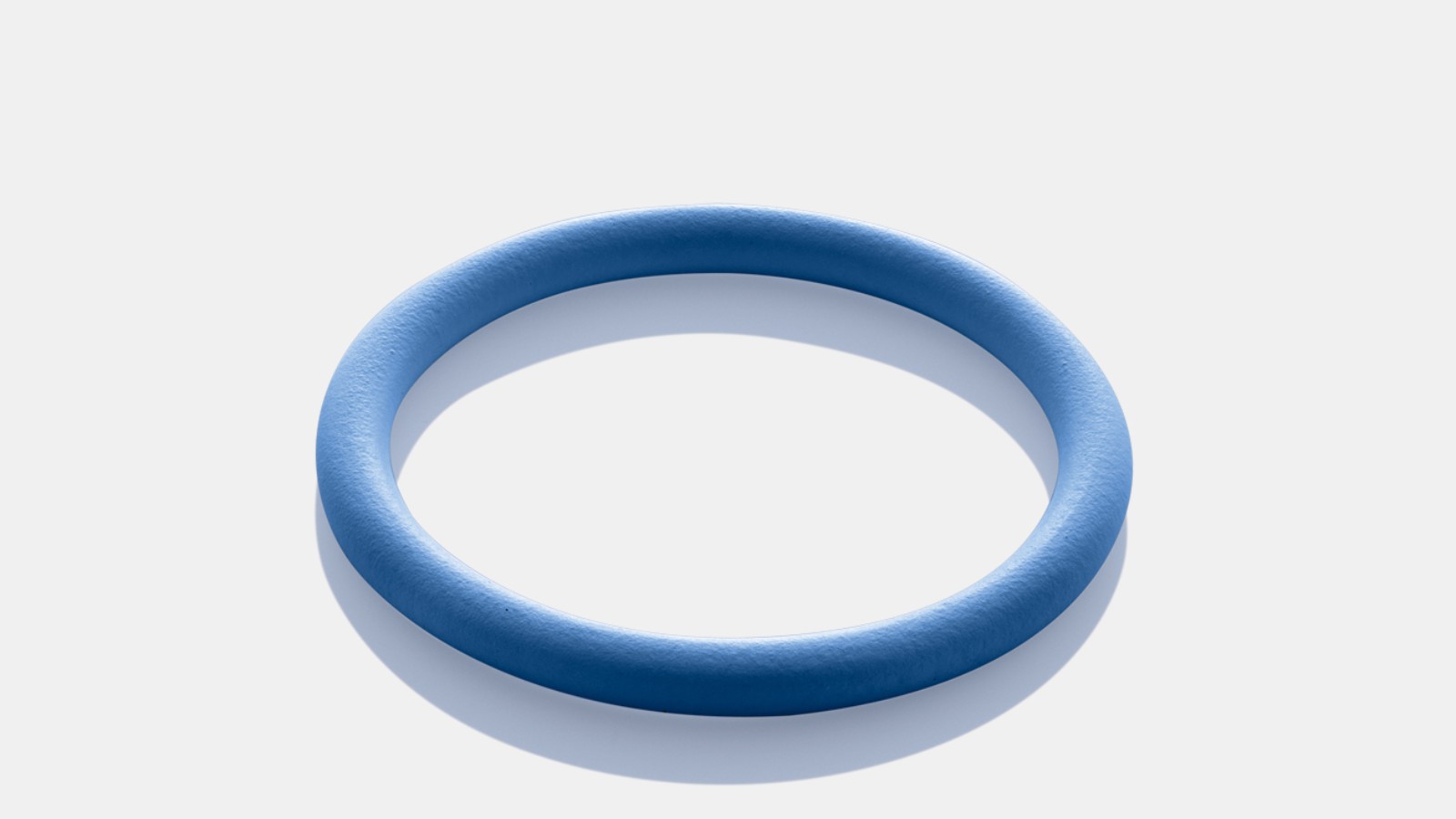

Geberit Mapress seal ring FKM blue
- Mineral oils
- Fuels
- Compressed air (oil purity class 0–X)
System pipes

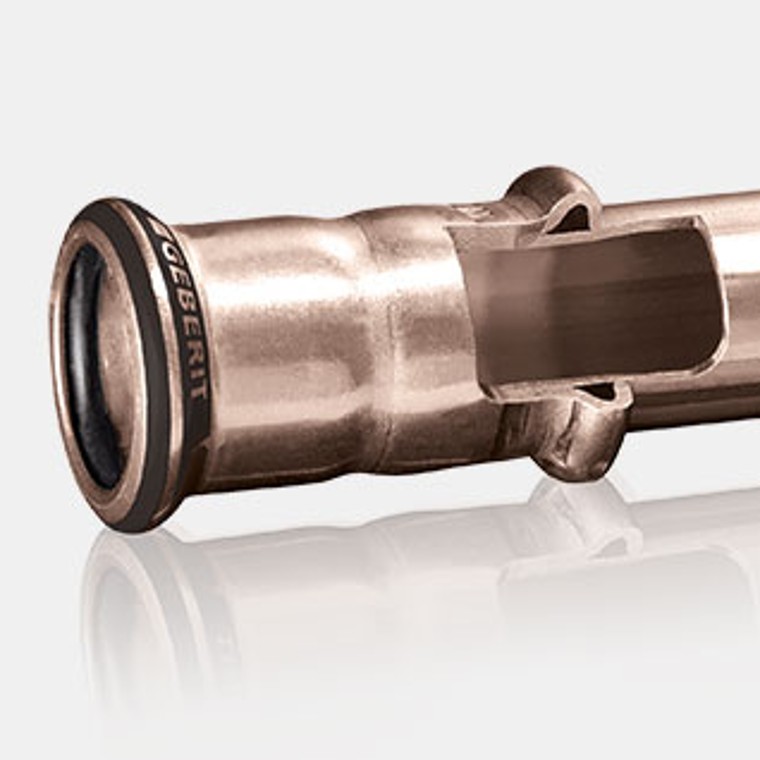

Geberit MapressCuNiFe system pipes
- Excellent corrosion resistance, especially against salt water
- Black protective caps on the pipe ends prevent the accumulation of dust and dirt
- Special thermal and mechanical treatment of the pipes creates a homogeneous, high-quality material structure
