Geberit Mepla Multilayer composite system for drinking water
Stay in shape with more flexibility

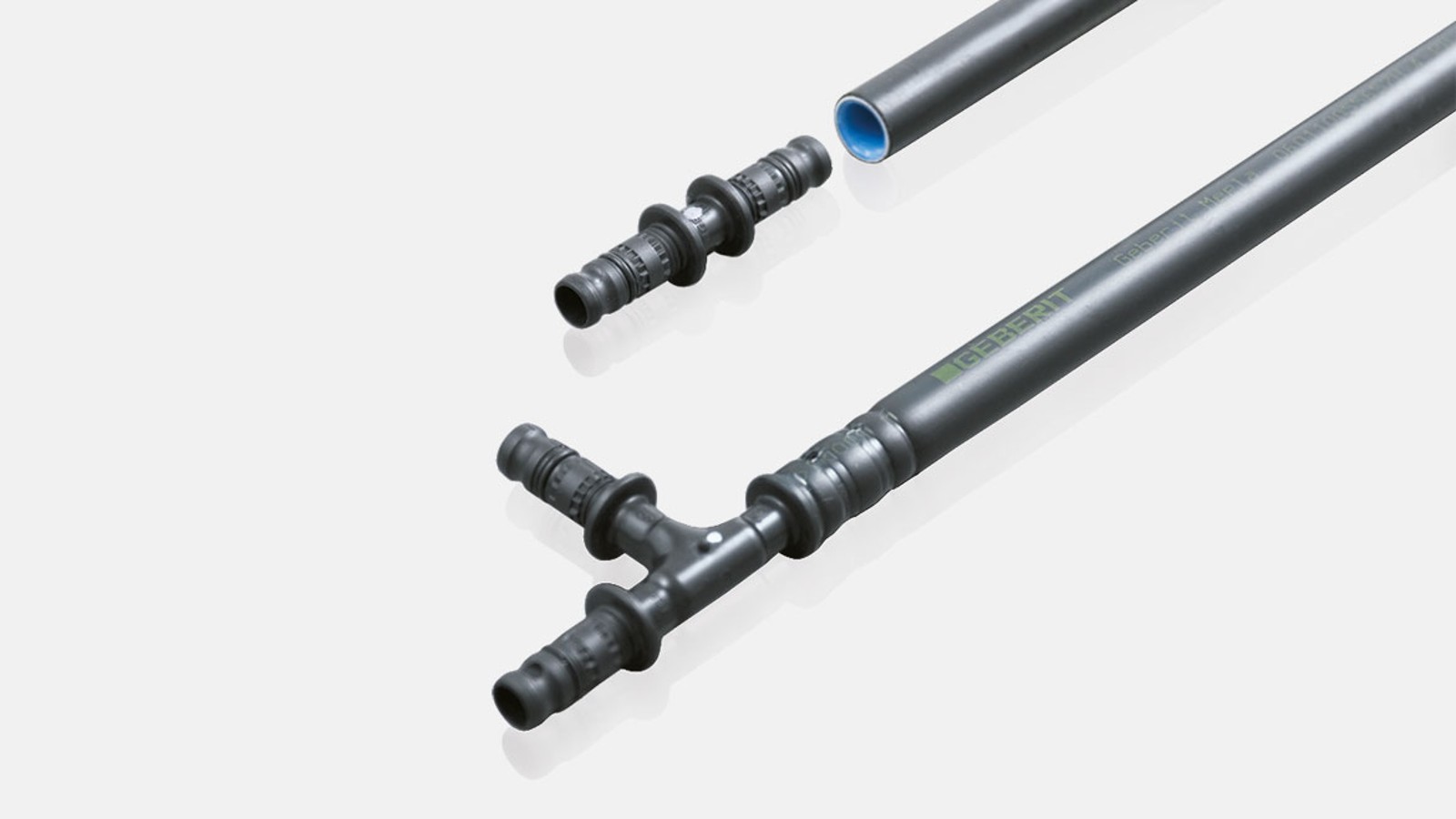

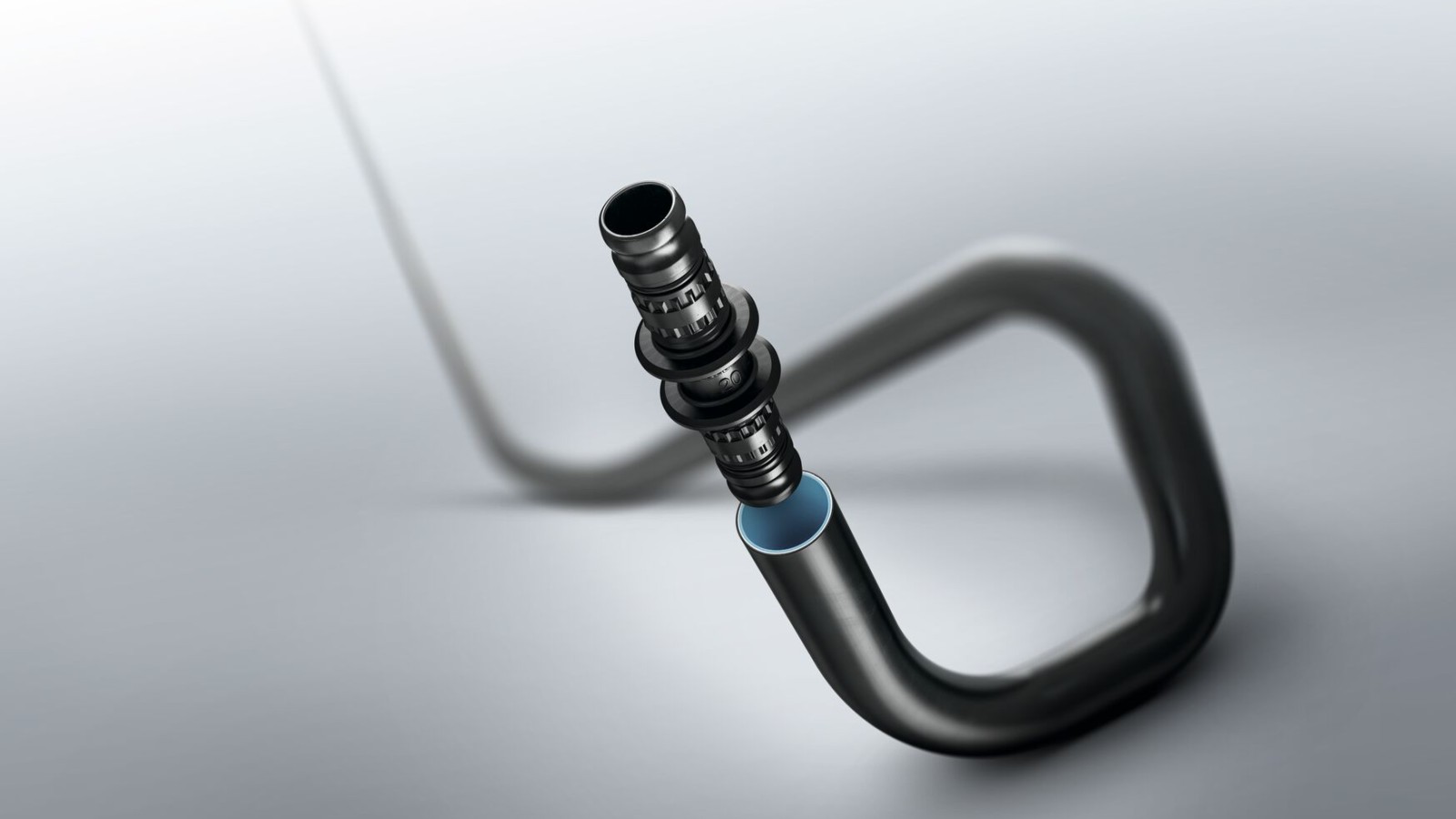

Geberit Mepla is a proven multilayer pipe system that has been used for many years in drinking water and heating installations.
Its design brings together the best properties of both metal and plastic for optimal performance.
This robust piping system takes no time to install and is inherently stable, flexible and resistant to pressure and corrosion. It is suitable for all water qualities – a water analysis is not required.
Geberit Mepla can easily be combined with Geberit Mapress.
Why choose Geberit Mepla?
Easy to install
Geberit Mepla is easy to install and process.
Reliable press connection
Geberit Mepla fittings and system pipes can be securely pressed.
Proven system
Geberit Mepla has proven itself for many years in various applications.
Suitable for many applications
In addition to drinking water and heating, Geberit Mepla can also be used for compressed air.
Main applications and areas of use
Drinking water pipes
Geberit Mepla can be used for drinking water pipes in the riser as well as for connection pipes for hot and cold water.
Heating in apartment buildings
Geberit Mepla is suitable for cooling and heating water, both with and without antifreeze agent, up to a pressure of 10 bar.
Compressed air
Compressed air installations can be implemented with Geberit Mepla for pressures of up to 10 bar.
Benefits of Geberit Mepla
Easy to install
The multilayer pipe combines the advantages of metal and plastic, making installation easier.

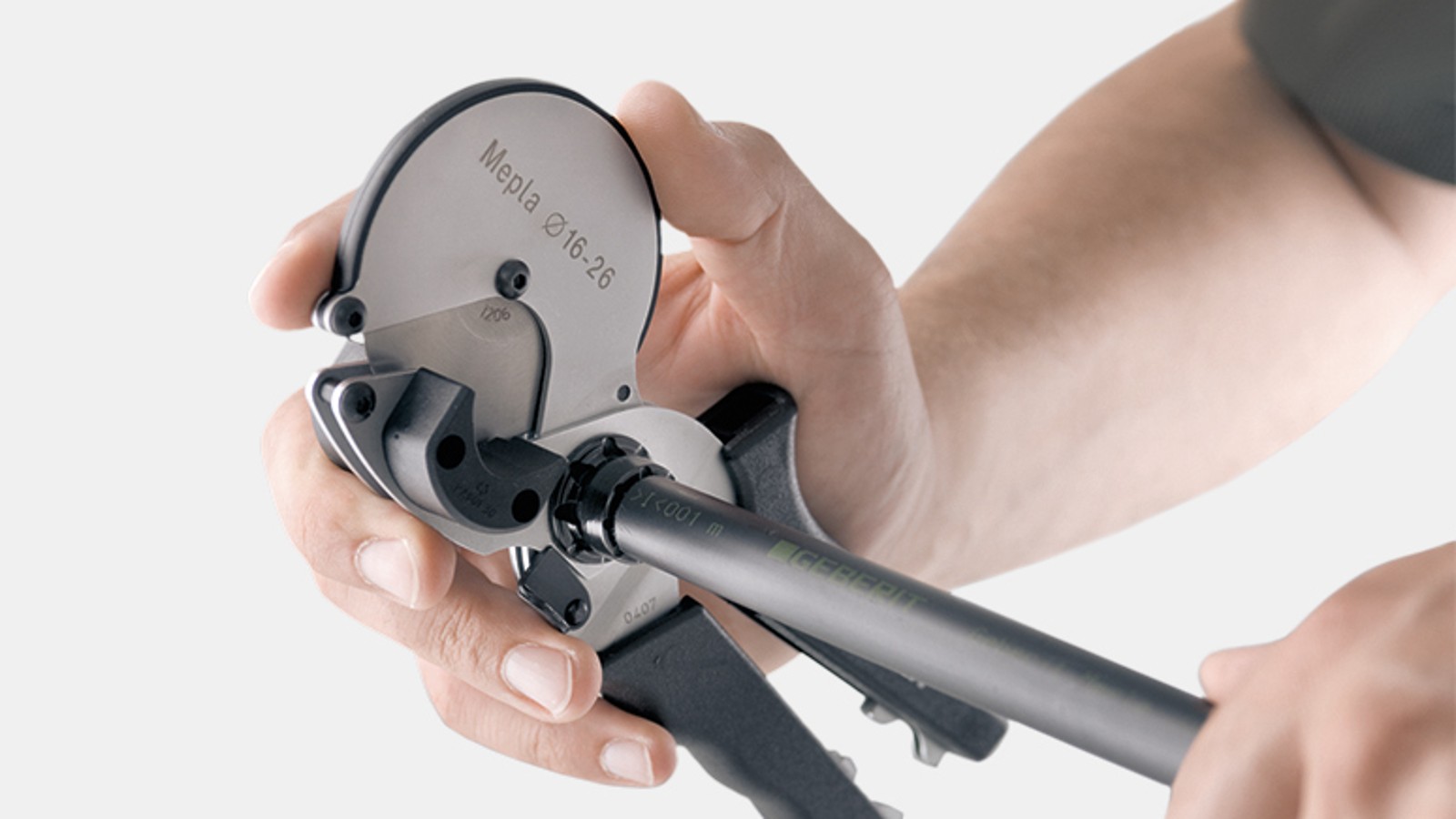

The pipes can be effortlessly cut to length with the Geberit Mepla pliers and deburred in a single step.

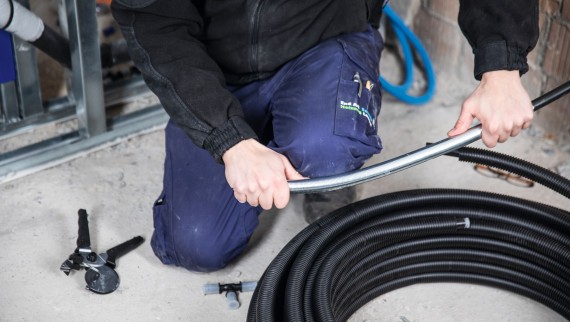

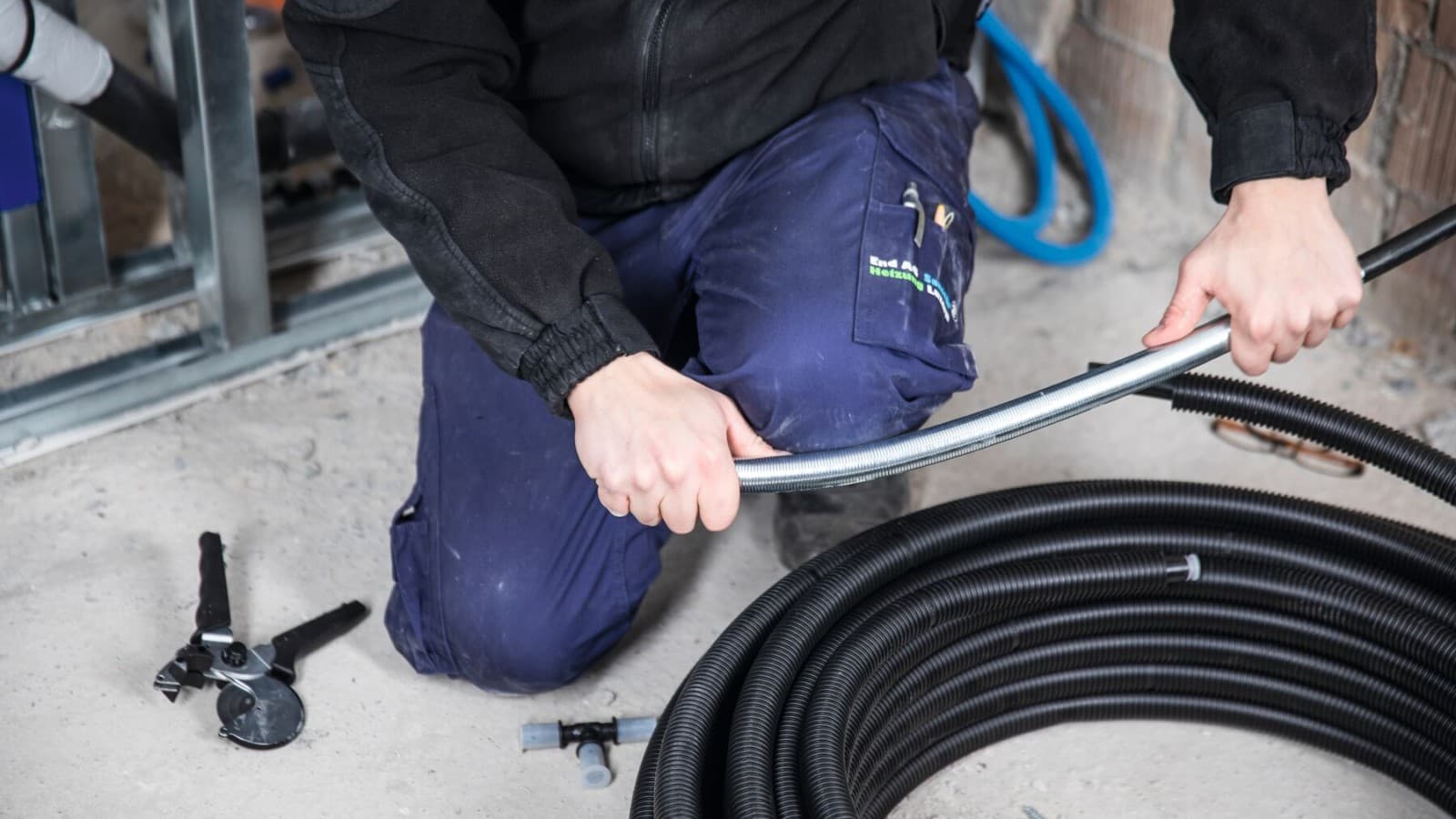

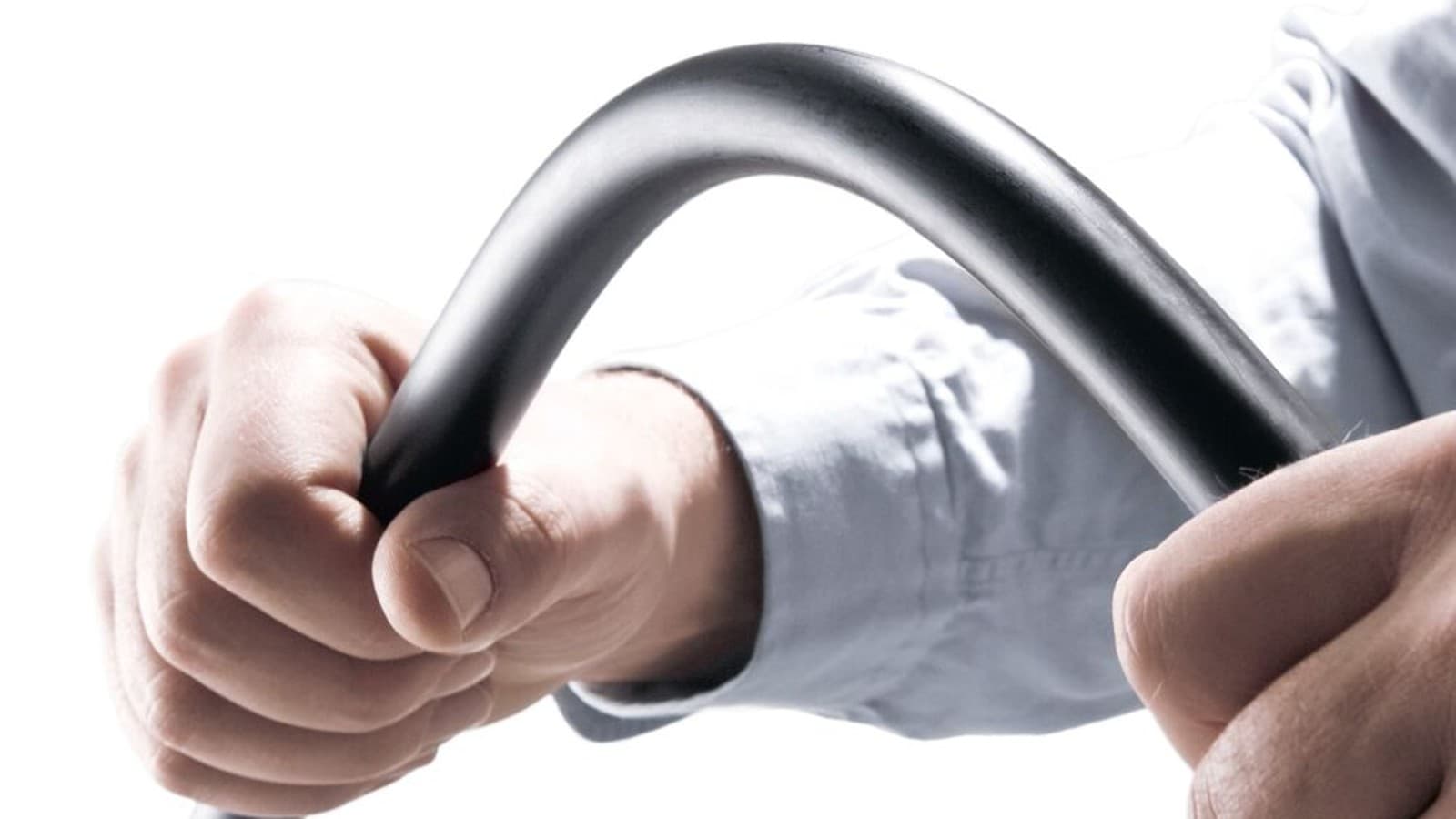

The composite pipes can also be bent with ease – up to DN 20 without additional tools – while the internal aluminium layer ensures they retain their shape. Bending tools can be used for larger dimensions.

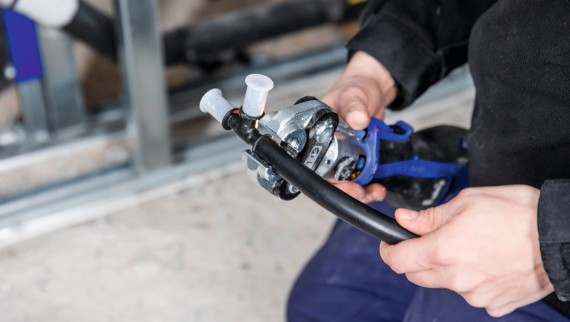

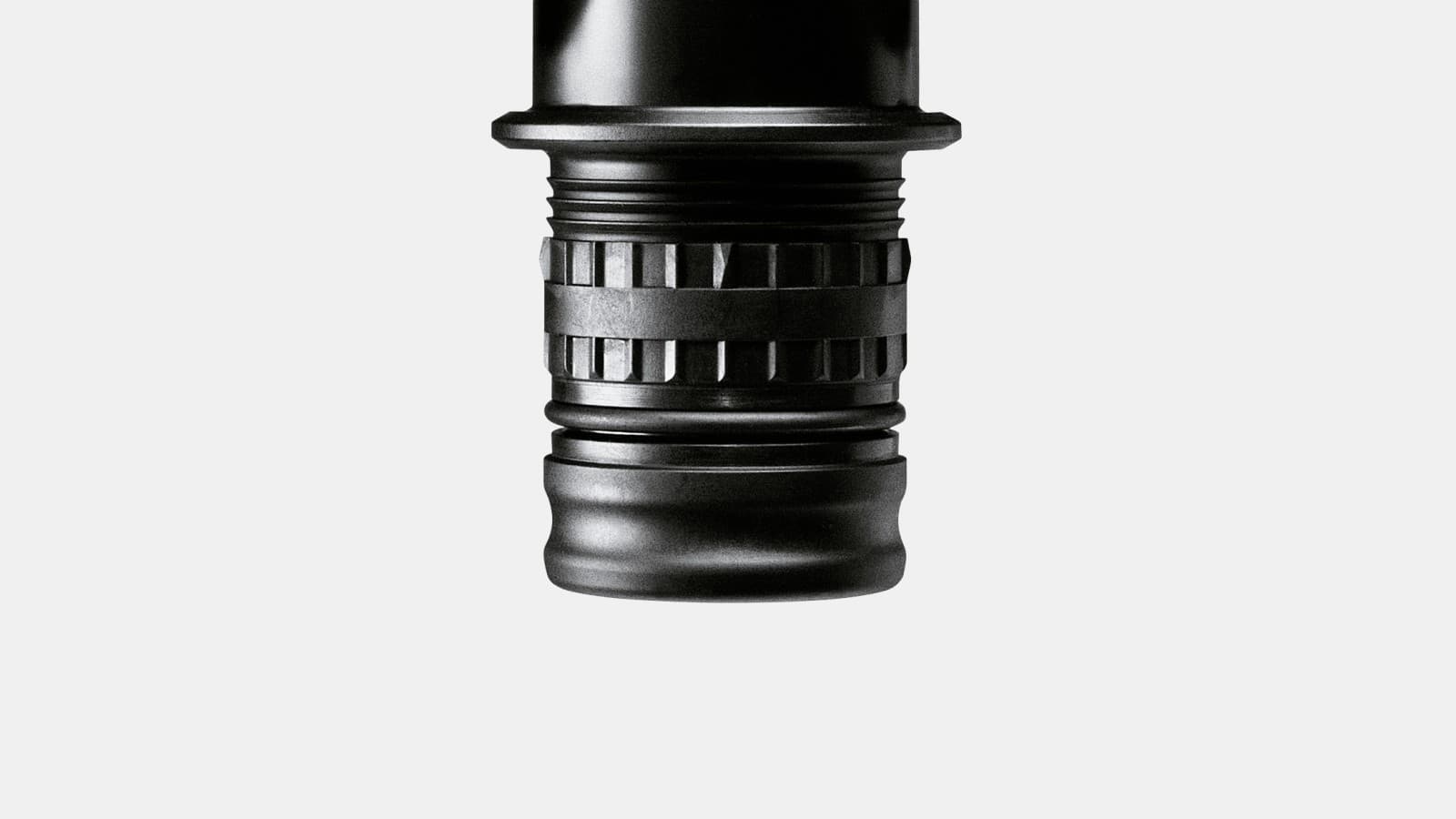

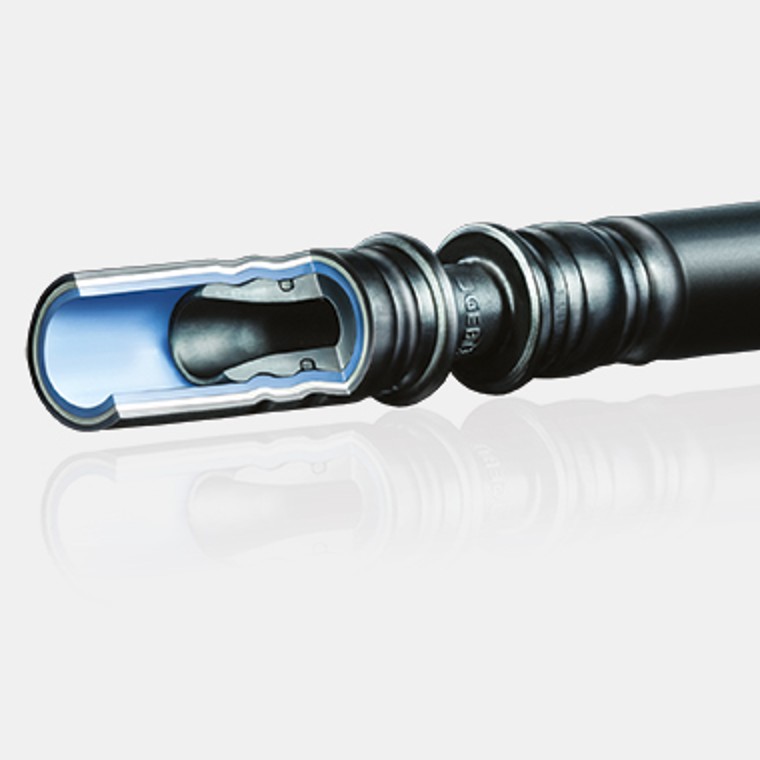

Special plastic cams on the plastic Geberit Mepla fittings and a retaining ring on the metal fittings provide a strong hold within the system pipe. This prevents the fitting from slipping out of the pipe during assembly and allows a single person to install, align and press the piping system with ease.

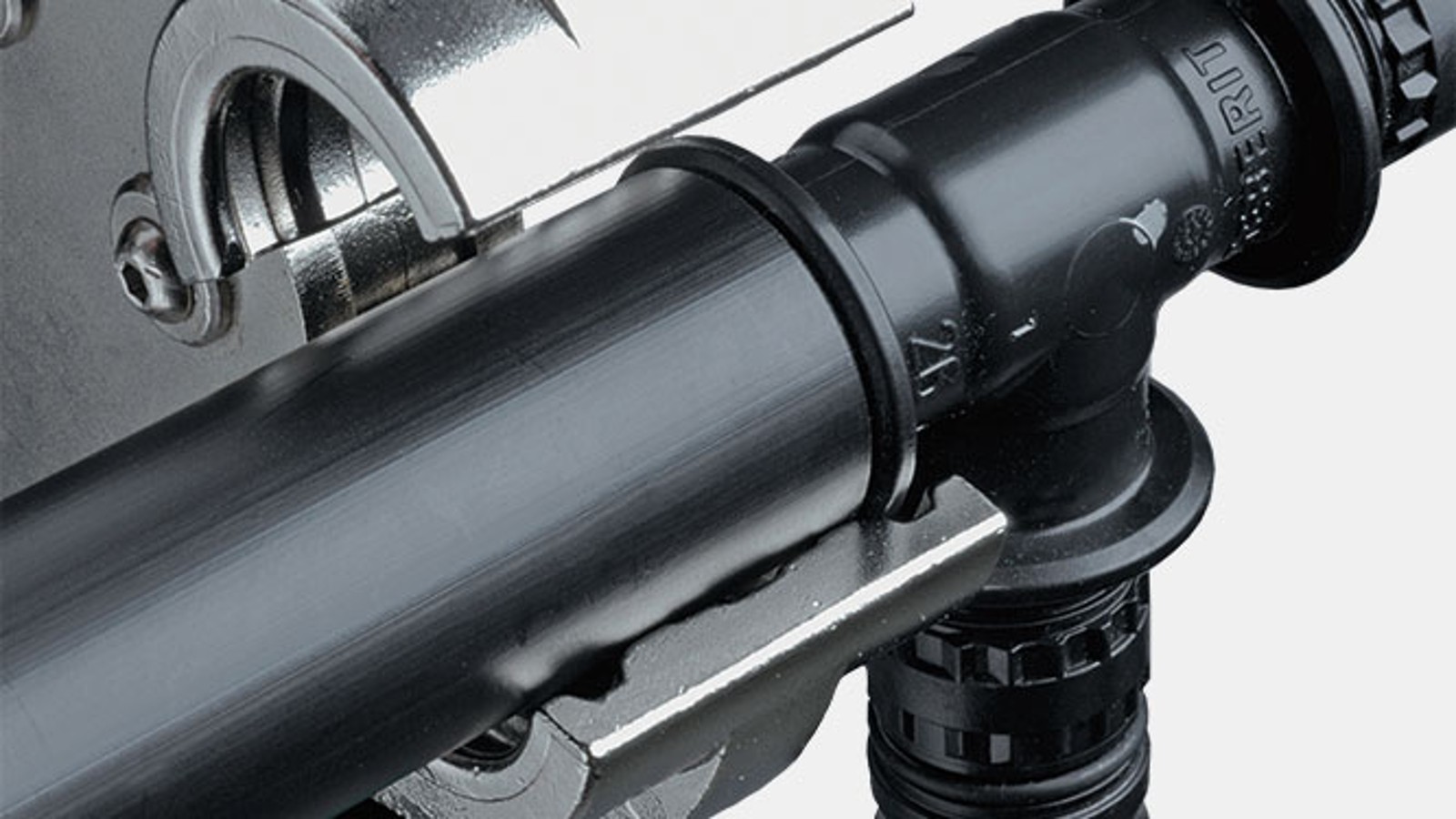

Reliable press connection
Geberit Mepla fittings are designed to ensure a secure installation process.

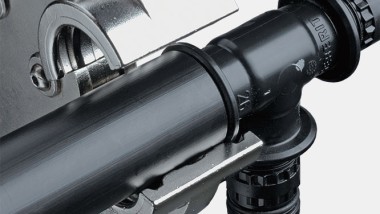

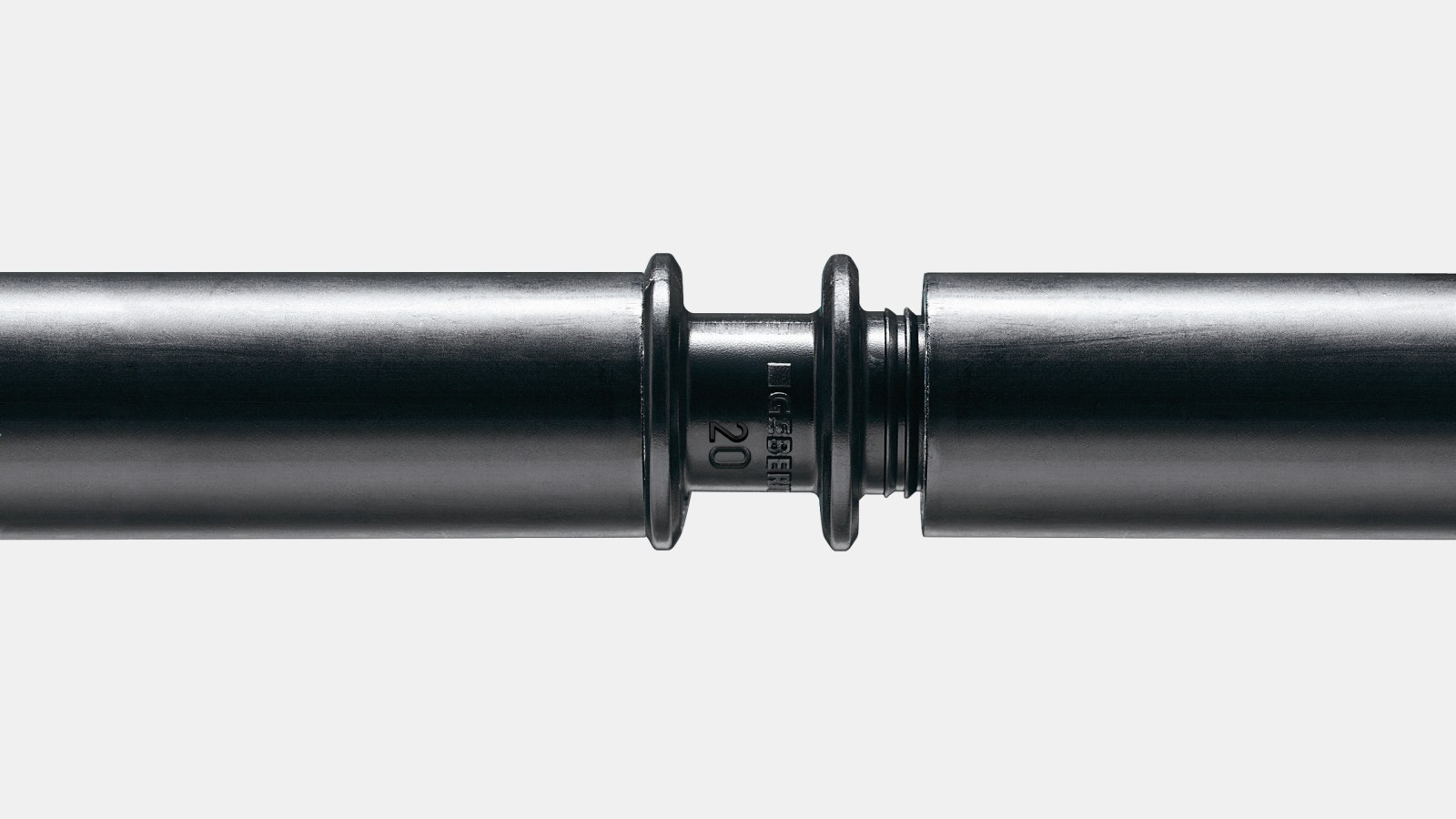

The clearly visible insertion depth stop gives plumbers the confidence that the pipe is correctly and fully inserted.
It also serves as a defined guide for the pressing jaws, ensuring they are applied precisely at the intended position. This prevents failed pressing sequences and ensures a reliable and durable connection.

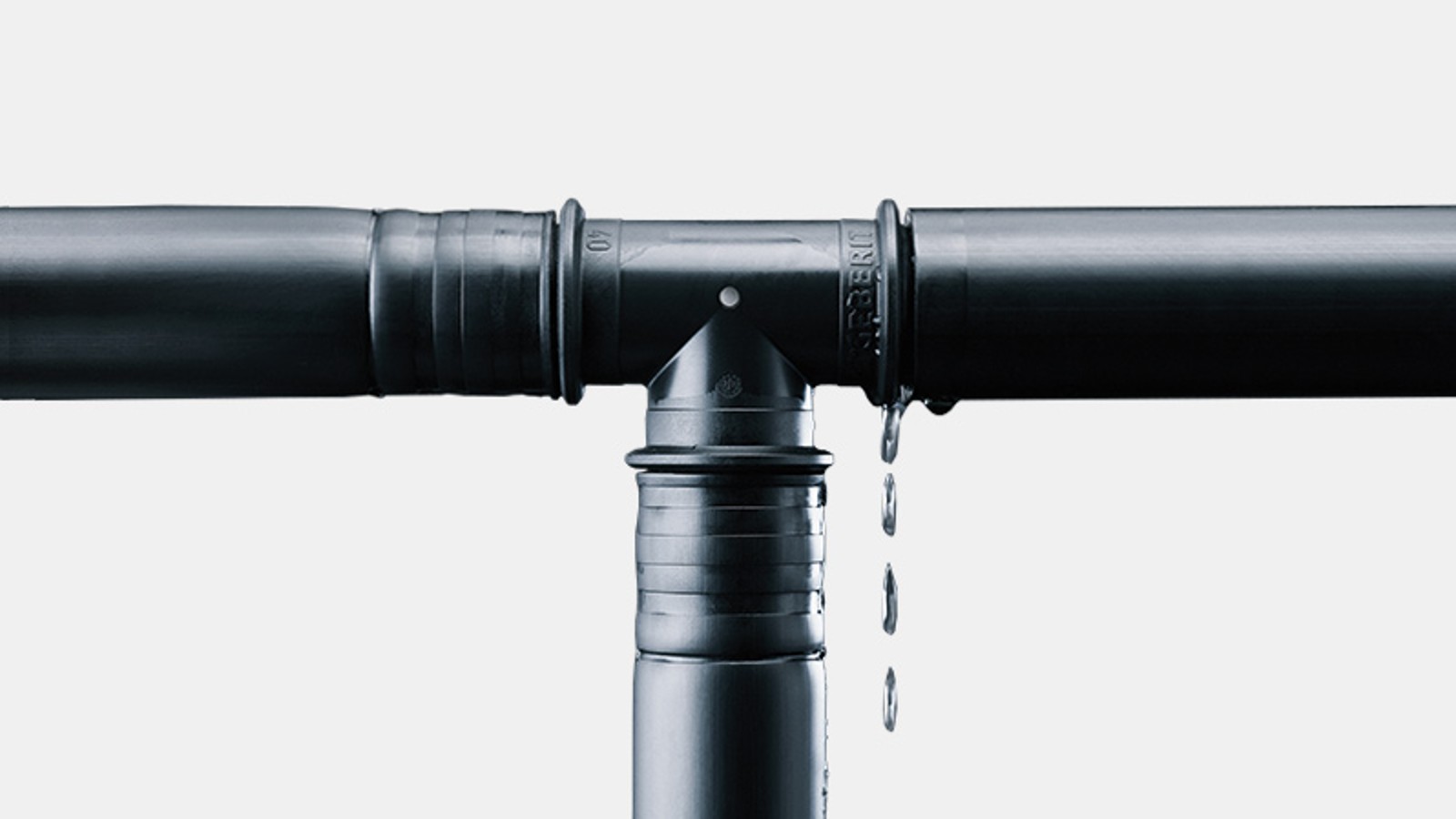

Unpressed Geberit Mepla fittings are immediately identifiable during a water leak test. Water flows out of the unpressed connections, even at low water test pressure.
Proven system for drinking water installations

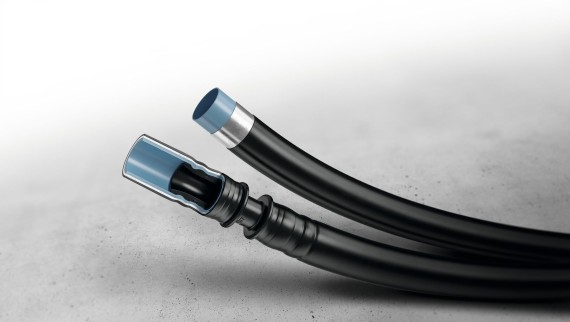

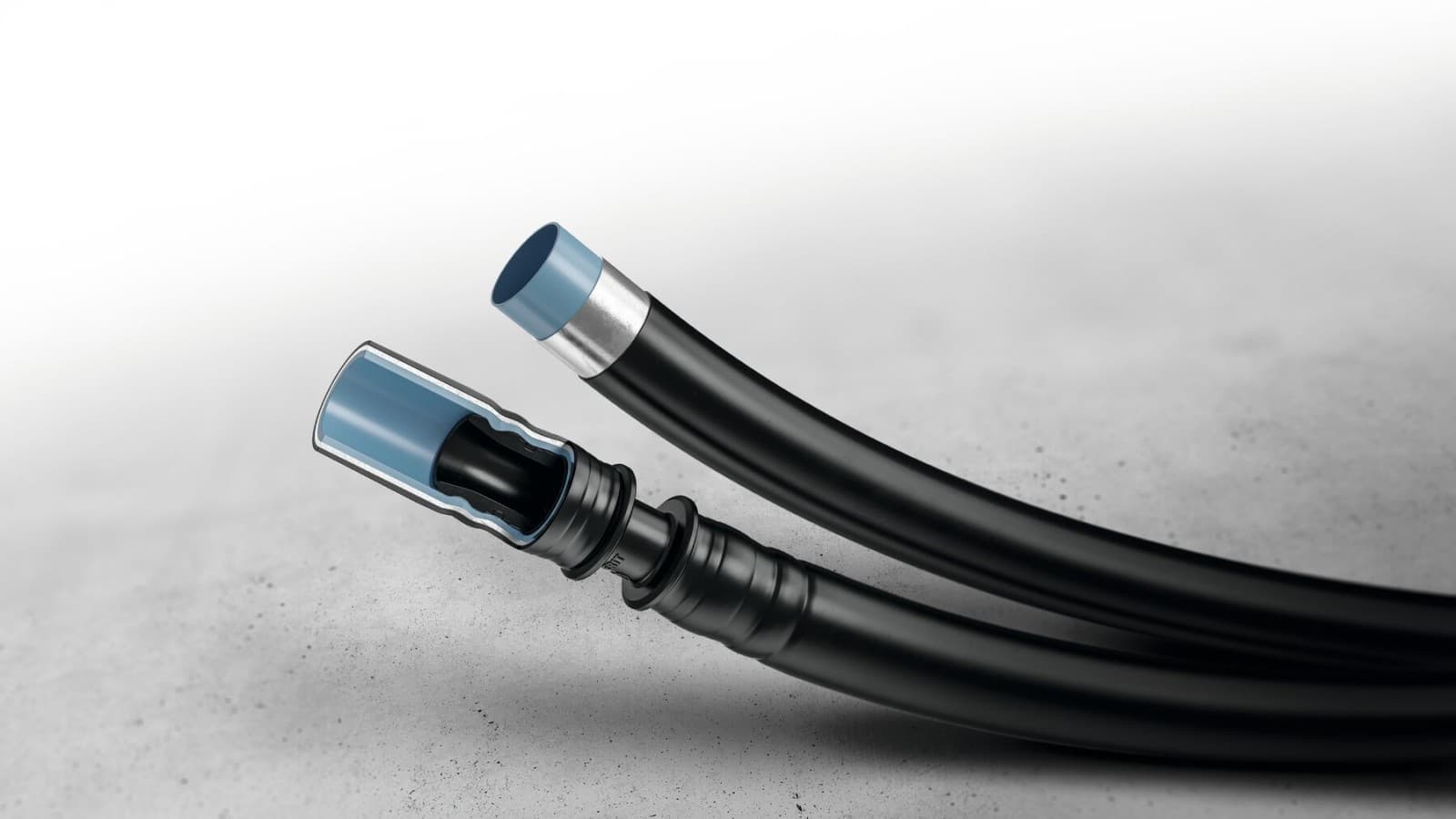

The Geberit Mepla multilayer pipe made of PE-RT (polyethylene of raised temperature resistance) and aluminium combines the benefits of both plastic and metal piping systems. The thick aluminium layer ensures a high level of stability and exceptional mechanical strength, while the polyethylene layers are corrosion-resistant.

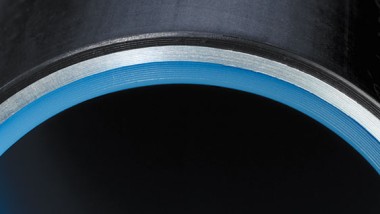

Geberit Mepla system pipes have a homogeneous, longitudinally welded aluminium layer with an integrated weld seam. This ensures uniform bending properties in all directions.
The tensile strength of the pressing operation of Geberit Mepla system pipes and fittings ensures reliable and permanent connections. Their quality is constantly checked and exceeds the required standards many times over. This guarantees a high level of reliability – even in heavily utilised piping systems.
Many good reasons for Geberit Mepla
Geberit Mepla at a glance
Facts & figures
Assortment overview
- 8 nominal widths from d16 to d75
- Around 500 fittings and components

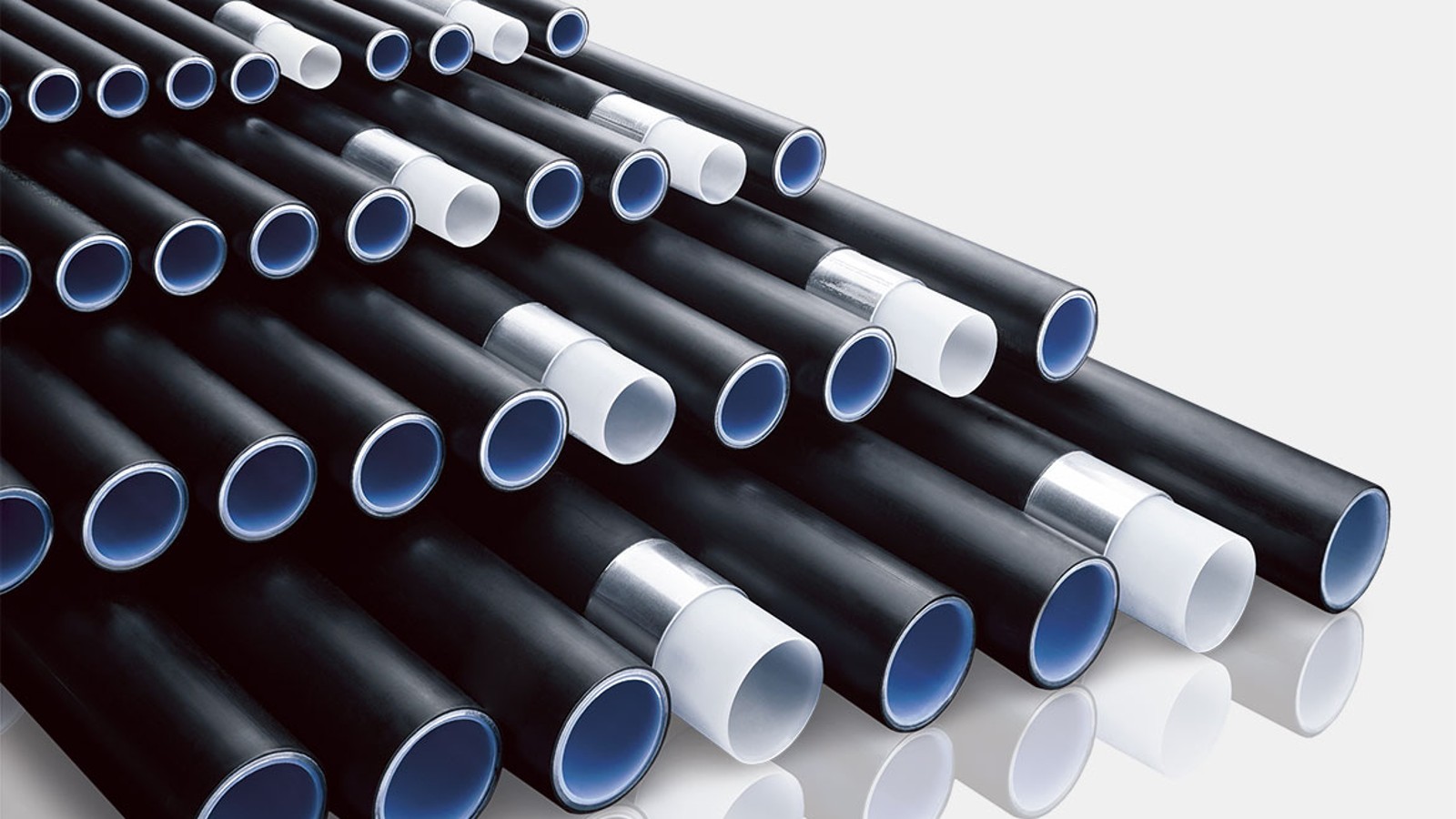

- Multilayer (ML) system pipes, also available in a protective tube or pre-insulated
- Polybutene (PB) system pipes, also available in a protective tube
- MasterFix adapter for tool-free, secure screw connections to Geberit sanitary appliances
- Extensive assortment of adapters and transitions to other systems
Dimensions
Available pipe dimensions
| Nominal width (DN) | Dimension d x s (mm) |
|---|---|
| 12 | 16 x 2.25 |
| 15 | 20 x 2.5 |
| 20 | 26 x 3.0 |
| 25 | 32 x 3.0 |
| 32 | 40 x 3.5 |
| 40 | 50 x 4.5 |
| 50 | 63 x 4.5 |
| 65 | 75 x 4.7 |
Fittings

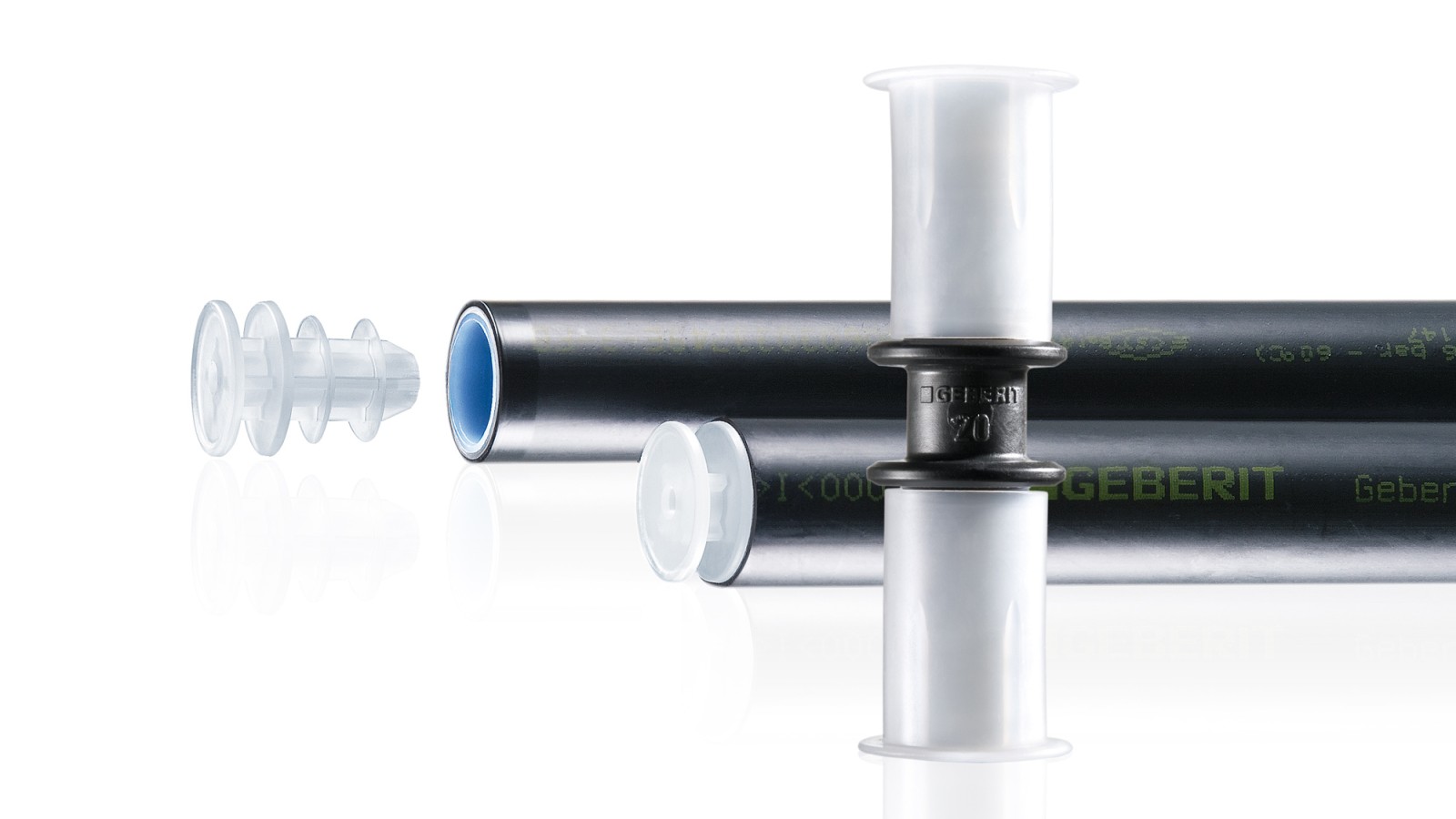

Geberit Mepla fittings
- Visible pipe insertion depth
- Precise pressing operation thanks to tool positioning aid
- Unpressed connections can be quickly identified during a leak test
- Wide assortment of fittings made of PVDF, gunmetal and brass
System pipes

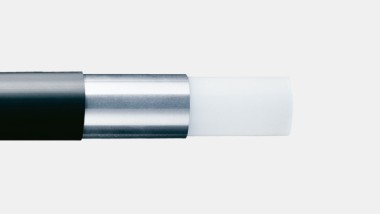

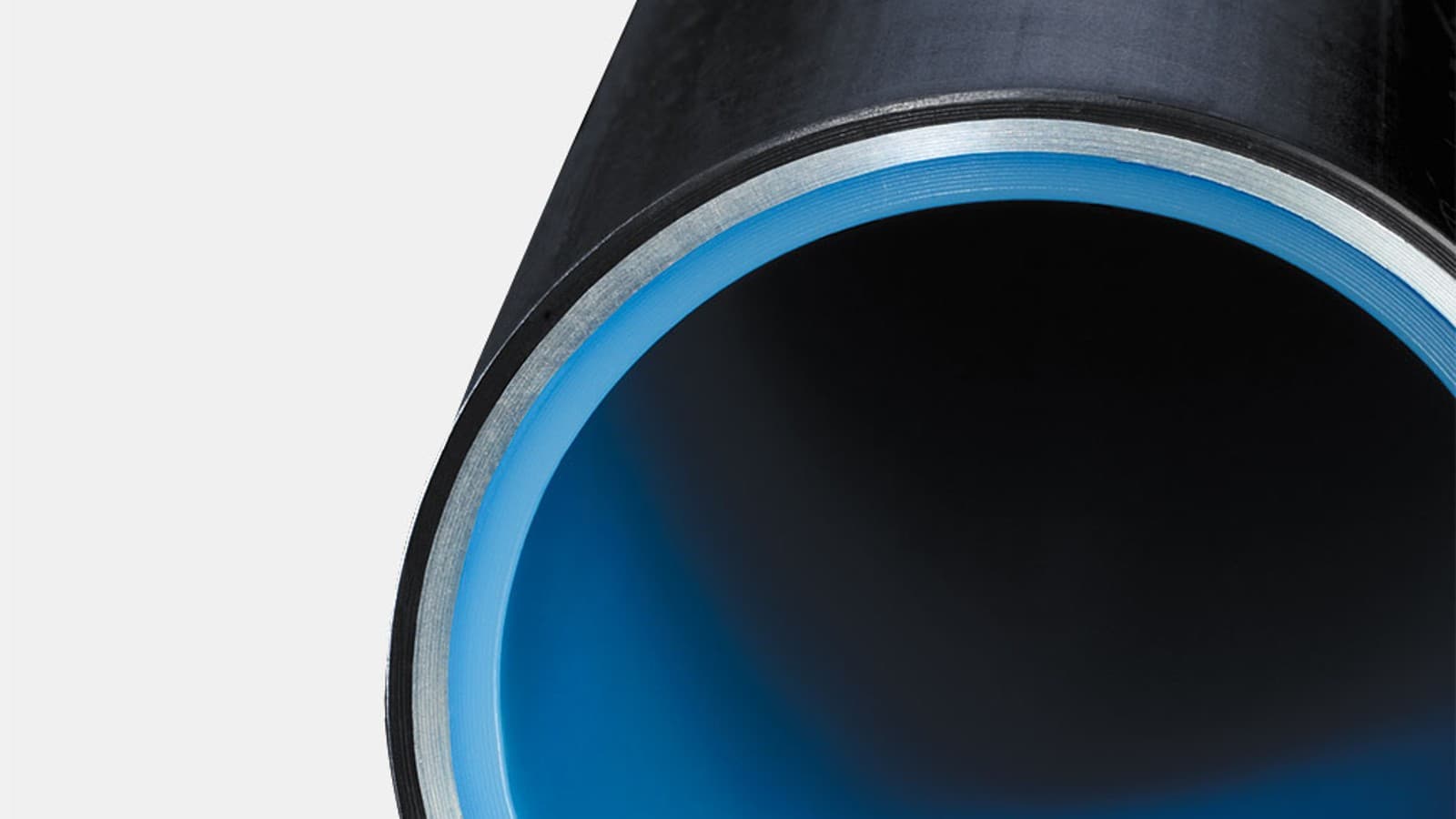

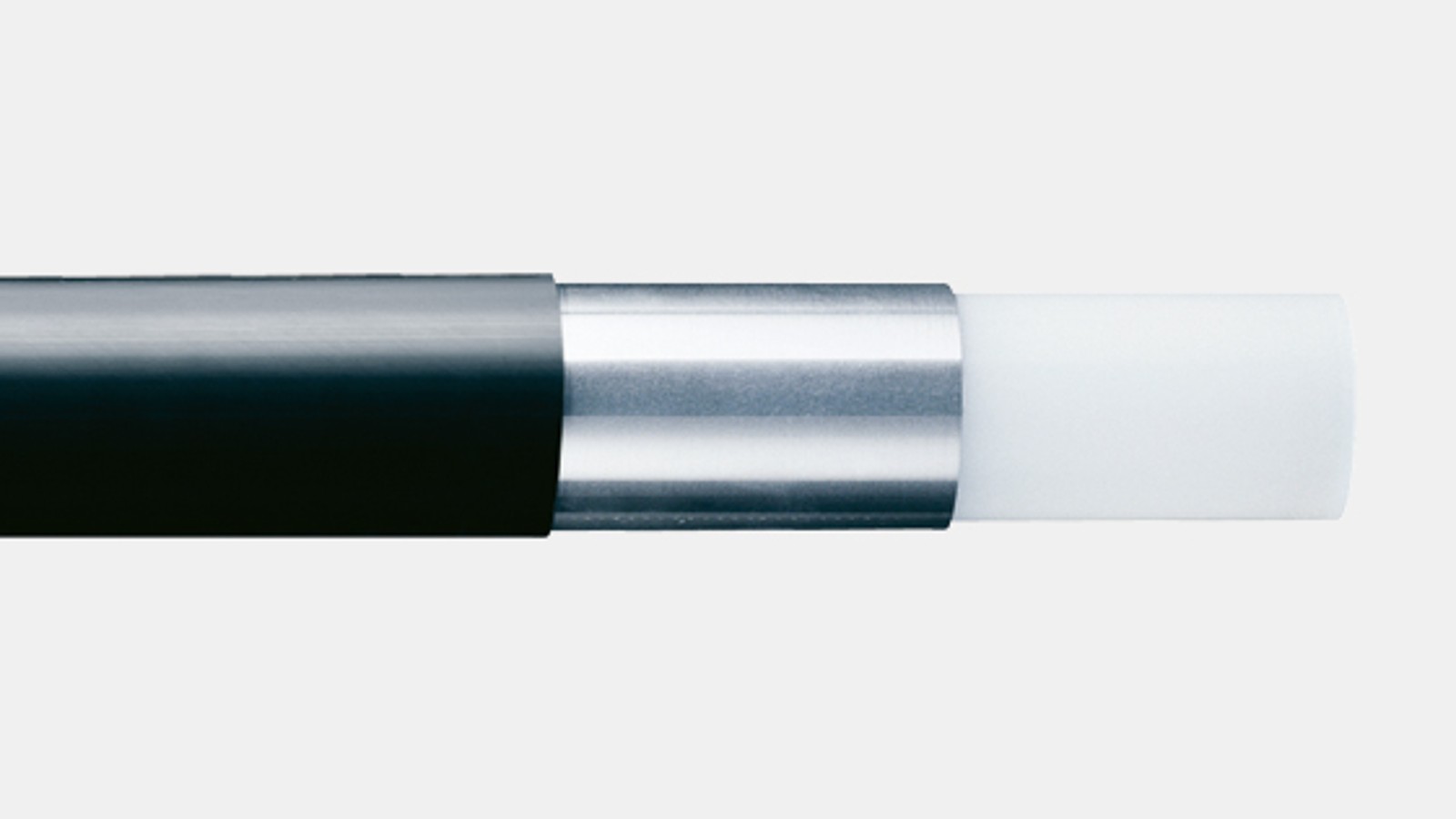

Three-layer multilayer pipe
- Outer plastic layer: second-generation PE-RT for protection against corrosion and mechanical damage
- Central aluminium layer: makes the multilayer pipe stable and bendable, and forms a barrier against diffusion
- Inner layer: corrosion-resistant and food-safe second-generation PE-RT
Installation

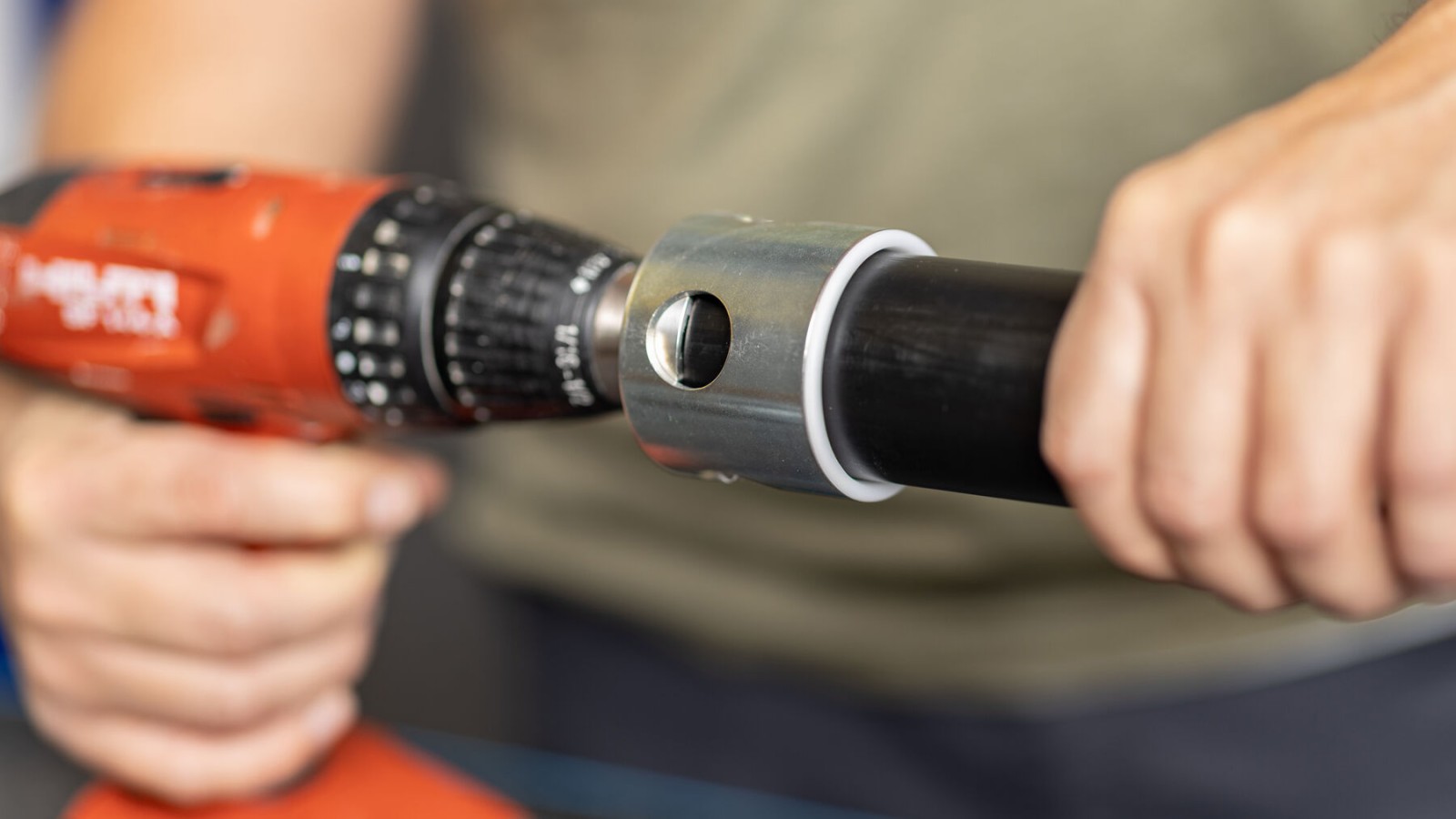

Geberit Mepla deburring and calibration attachment
Maximise efficiency and save time: the attachment is compatible with any drill driver with a variable speed of up to 500 rpm to calibrate and deburr Geberit Mepla pipes in a single step.
It is available for diameters from DN 12 to DN 65.
A quick guide to installation
Discover similar products
Tools and accessories for Geberit supply systems

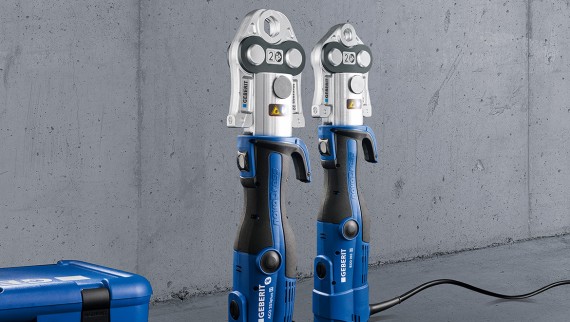

Approved pressing operations are created with the Geberit pressing jaws, pressing collars and adapter jaws. These tools are used as the basis for system approvals.
Supply systems
Modern buildings have to be supplied with water, heat, energy and fresh air. This is where Geberit comes in with an extensive range of reliable and durable solutions.

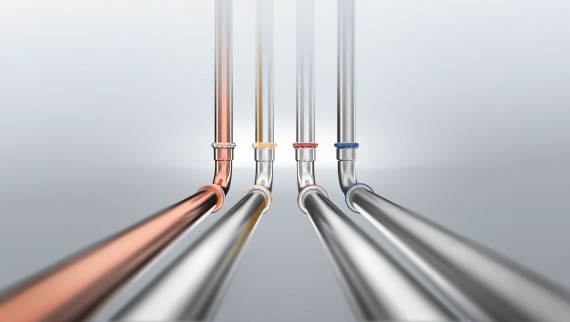

Geberit Mapress
